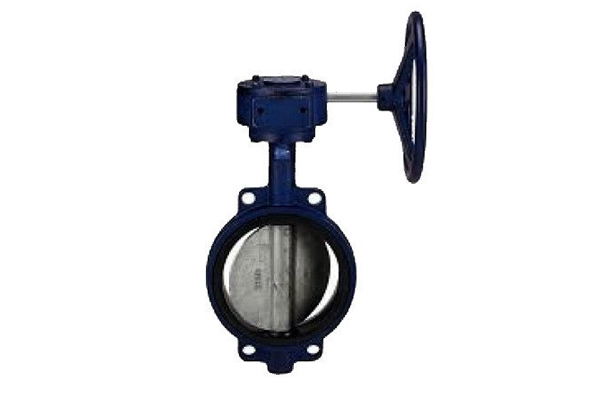

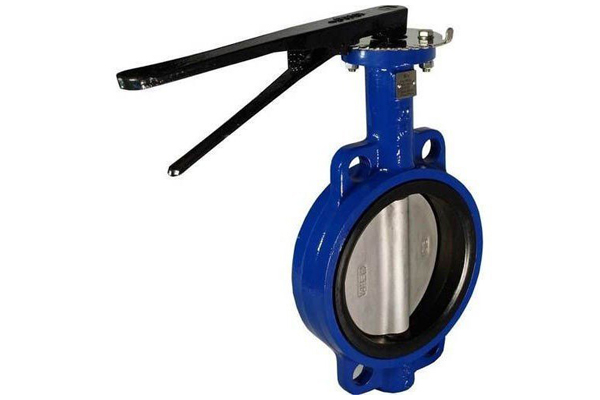

Butterfly Valve are designed & manufactured to have optimum mix of structural stability, flow efficiency & effective seating coupled with advantage of light weight, compact design and ease of operation. Only a quarter turn is needed to fully open or close the valves.

The salient features include:-

• Available in SG Iron and SS Disc
• Fit n Forget' Butterfly Valve – internally molded liner
• 2” to 24”
• Available PN 10 & PN 16
• Up to ANSI # 150
• From – 50° to 205° C
• End connection in Wafer, Lugged & Flanged Models
• Lining and metallurgy to suit a wide variety of applications, including sea water & water desalination plants
• Seal type (EPDM, Buna N, Viton)
• Standard compliance with API 609 & 598
